TINI Q-G MINIATURE CONNECTORS
PHONE: 773 792-2700
32
CONNECTORS & RECEPTACLES
?
* Please visit the product pages on our website for the most up-to-date product information
TINI Q-G ? MINIATURE CONNECTORS (continued)
SPECIFICATIONS: (3 – 5 CORD MOUNT ONLY)
ELECTRICAL
Contact Resistance: .010 ohms maximum after life
(and after salt spray).
Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC
on 5 circuit) based on 30°C maximum.
Insulation Resistance: 510,000 megohms minimum @ 500 V
DC (initial); 10,000 megohms minimum (after humidity test).
Dielectric Strength: 1,000 V (rms).
MECHANICAL
Life: 5,000 operations minimum
Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after
life, insertion; 5.6 lb/2.54 kg, withdrawal.
Solderability Standard: Meets EIA RS-186-9E.
Mechanical Shock: Meets MIL-STD-202, method 213B.
Vibration: Meets MIL-STD-202, method 201A.
Wire Size: #22 wire gauge solid; #24 wire gauge stranded.
ENVIRONMENTAL
Thermal Range: -55°C to + 85°C.
Humidity: Meets MIL-STD-202, method 106D.
Thermal Shock: Meets MIL-STD-202, method 107D.
Salt Spray: Meets MlL-STD-202, method 101.
MATERIAL
Housing, Plugs and Male Receptacles: Copper alloy,
nickel-plated. Female Receptacle–Die-cast zinc, nickel-plated.
Black Tini Q-G ? Housing: Copper alloy, black chrome-plated.
Pin and Socket Contacts: Copper alloy, silver-plated.
Flex Relief: Molded black thermoplastic elastomer.
Latch Button: Molded black thermoplastic.
Release Lever and Mounting Washer: Steel, nickel-plated.
Standoff/Ground Terminal and Cable Clamp:
Steel, electrotinned.
Inserts and Insulating Spacer: Molded, high strength
thermoplastic.

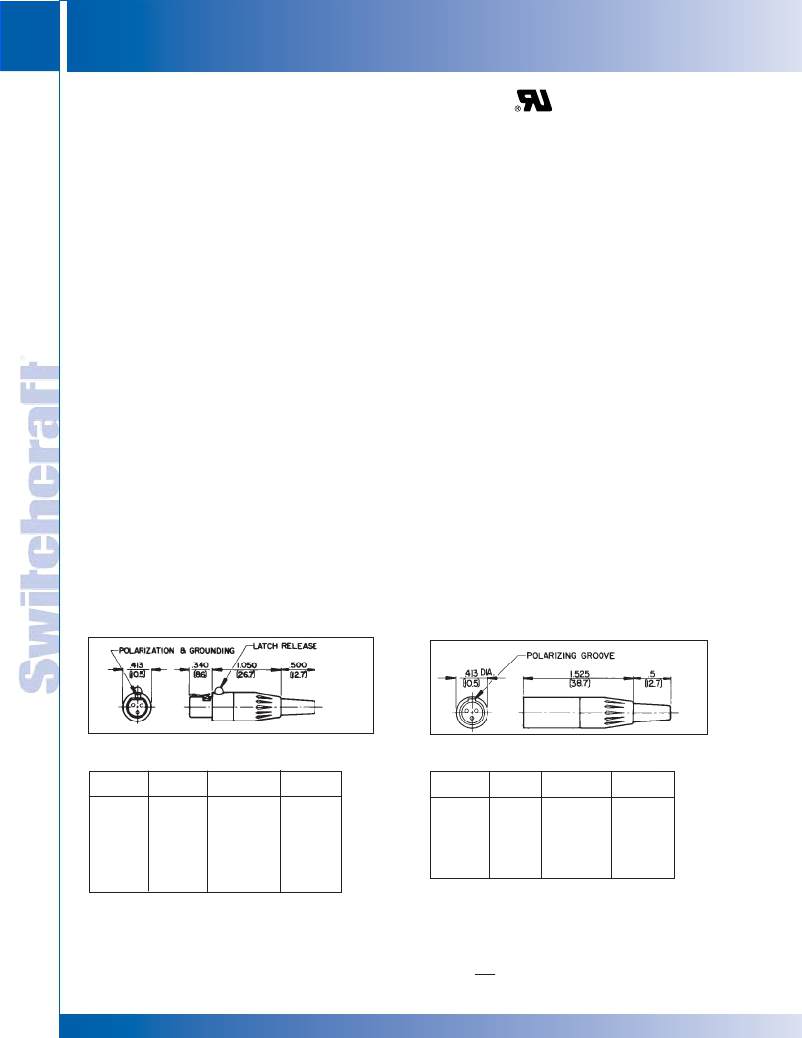

STRAIGHT FEMALE CORD PLUG
Latch (Female): Copper alloy, nickel-plated.
Mounting Nut: Copper alloy, nickel-plated.
SPECIFICATIONS:
( 6 – 8 Cord Mount and all Receptacles and Adapters)
ELECTRICAL
Contact Resistance: .010 ohm maximum after life.
Current Rating (Carry only): 1.5A, 125 VAC, based
on 30° maximum
Insulation Resistance: 510,000 M ? minimum
@ 500 VDC (initial).
Dielectric Strength: 250 V rms.
MECHANICAL
Life: 2,000 operations
Insertion/Withdrawal Forces (after life): –13 pound
insertion; –13 pound maximum withdrawal
Solderability Standard: Meets EIA RS-186-9E.
Wire Size: 28 wire gauge stranded.
MATERIAL
Housings, Plugs and Male Receptacles: Copper alloy,
nickel-plated.
Socket Contacts: Copper alloy, silver-plated.
Pin Contacts: Copper alloy, electrotinned.
Flex Relief and Latch Button: Molded thermoplastic.
Ground Terminal: Copper alloy, electrotinned.
Inserts and Insulating Spacer: Molded high strength
thermoplastic, UL 94 V-0.
Latch (Female): Copper alloy, nickel-plated.
Mounting Nut: Copper alloy, nickel-plated.
Ferrite: 43 material, shielded head.
Frame: Molded thermoplastic, UL 94 V-0.
STRAIGHT MALE CORD PLUG
Part Insert
Number Contacts
Part
Number
Insert
Contacts 2
Part
Number
Insert
Pins
Part
Number
Insert
Pins
TA3F
TA3FB*
TA3FL 1
TA3FLB*
TA4F
TA4FB*
3
3
3
3
4
4
TA4FLB *
TA5F
TA5FL 1
TA5FLB*
TA6FL 1
TA7FL
4
5
5
5
6
7
TA3M
TA3MB*
TA3ML
TA4M
TA4MB*
TA4ML 1
3
3
3
4
4
4
? TA5M
? TA5ML
TA5MLB*
TA6ML 1
TA7ML
TA8ML
5
5
5
6
7
7
TA4FL 1
4
TA8FL
8
1. Add AU to Part Number for Gold Contacts.
1 Flex relief omitted for larger diameter cable
* B indicates black housing
2. Add AU to Part Number for Gold Contacts.
* B indicates black housing
? Available on special order only; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
